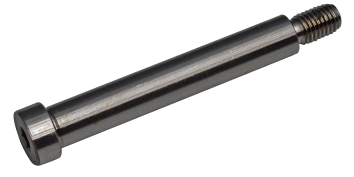

Vis épaulé à 6 pans creux LA1021
Propriétés
Tête cylindrique.
Interchangeable avec :
série 1021.
Norme : NF E 27-191
Classe 12/9.

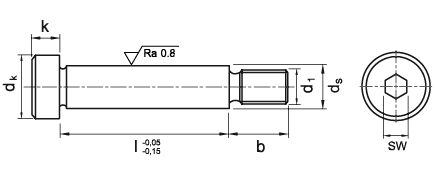

| d | SW | dk | ds | b | k |
| 4 | 2,5 | 7 | 5 | 7 | 3,5 |
| 5 | 3 | 9 | 6 | 8 | 4 |
| 6 | 4 | 11 | 8 | 10 | 5 |
| 8 | 5 | 14 | 10 | 12 | 6 |
| 10 | 6 | 18 | 12 | 16 | 8 |
| 12 | 8 | 22 | 16 | 20 | 10 |
| 16 | 10 | 28 | 20 | 25 | 12 |
| 20 | 14 | 36 | 25 | 32 | 16 |
| d1 | l | Code Lugand | Libellé | Prix HT |
| 4 | 6 | 40 04 711 | VIS EPAULEE LA1021 4X 6 | 3,11 € |
| 10 | 40 04 713 | VIS EPAULEE LA1021 4X 10 | 4,17 € | |
| 16 | 40 04 716 | VIS EPAULEE LA1021 4X 16 | 4,17 € | |
| 25 | 40 04 718 | VIS EPAULEE LA1021 4X 25 | 4,27 € | |
| 5 | 6 | 40 04 722 | VIS EPAULEE LA1021 5X 6 | 3,21 € |
| 10 | 40 04 724 | VIS EPAULEE LA1021 5X 10 | 2,53 € | |
| 12 | 40 04 725 | VIS EPAULEE LA1021 5X 12 | 2,47 € | |
| 14 | 40 04 726 | VIS EPAULEE LA1021 5X 14 | 2,47 € | |
| 20 | 40 04 728 | VIS EPAULEE LA1021 5X 20 | 2,47 € | |
| 25 | 40 04 729 | VIS EPAULEE LA1021 5X 25 | 2,62 € | |
| 30 | 40 04 730 | VIS EPAULEE LA1021 5X 30 | 2,62 € | |
| 6 | 6 | 40 04 736 | VIS EPAULEE LA1021 6X 6 | 3,29 € |
| 8 | 40 04 737 | VIS EPAULEE LA1021 6X 8 | 3,29 € | |
| 10 | 40 04 738 | VIS EPAULEE LA1021 6X 10 | 2,60 € | |
| 20 | 40 04 742 | VIS EPAULEE LA1021 6X 20 | 2,71 € | |
| 25 | 40 04 743 | VIS EPAULEE LA1021 6X 25 | 2,71 € | |
| 30 | 40 04 744 | VIS EPAULEE LA1021 6X 30 | 2,88 € | |
| 32 | 40 04 745 | VIS EPAULEE LA1021 6X 32 | 2,88 € | |
| 40 | 40 04 746 | VIS EPAULEE LA1021 6X 40 | 3,01 € | |
| 6 | 50 | 40 04 747 | VIS EPAULEE LA1021 6X 50 | 3,01 € |
| 60 | 40 04 748 | VIS EPAULEE LA1021 6X 60 | 3,38 € | |
| 80 | 40 04 751 | VIS EPAULEE LA1021 6X 80 | 3,87 € | |
| 100 | 40 04 753 | VIS EPAULEE LA1021 6X100 | 4,92 € | |
| 8 | 10 | 40 04 757 | VIS EPAULEE LA1021 8X 10 | 2,67 € |
| 16 | 40 04 760 | VIS EPAULEE LA1021 8X 16 | 2,67 € | |
| 20 | 40 04 761 | VIS EPAULEE LA1021 8X 20 | 2,82 € | |
| 25 | 40 04 762 | VIS EPAULEE LA1021 8X 25 | 2,94 € | |
| 32 | 40 04 764 | VIS EPAULEE LA1021 8X 32 | 2,94 € | |
| 40 | 40 04 765 | VIS EPAULEE LA1021 8X 40 | 3,29 € | |
| 50 | 40 04 766 | VIS EPAULEE LA1021 8X 50 | 3,29 € | |
| 60 | 40 04 767 | VIS EPAULEE LA1021 8X 60 | 3,50 € | |
| 63 | 40 04 768 | VIS EPAULEE LA1021 8X 63 | 3,81 € | |
| 70 | 40 04 769 | VIS EPAULEE LA1021 8X 70 | 4,19 € | |
| 80 | 40 04 770 | VIS EPAULEE LA1021 8X 80 | 4,19 € | |
| 10 | 12 | 40 04 780 | VIS EPAULEE LA1021 10X 12 | 3,29 € |
| 16 | 40 04 782 | VIS EPAULEE LA1021 10X 16 | 3,33 € | |
| 20 | 40 04 783 | VIS EPAULEE LA1021 10X 20 | 3,33 € | |
| 25 | 40 04 784 | VIS EPAULEE LA1021 10X 25 | 3,76 € | |
| 10 | 32 | 40 04 786 | VIS EPAULEE LA1021 10X 32 | 3,92 € |
| 40 | 40 04 787 | VIS EPAULEE LA1021 10X 40 | 4,40 € | |
| 50 | 40 04 788 | VIS EPAULEE LA1021 10X 50 | 4,40 € | |
| 60 | 40 04 789 | VIS EPAULEE LA1021 10X 60 | 4,79 € | |
| 63 | 40 04 790 | VIS EPAULEE LA1021 10X 63 | 4,79 € | |
| 160 | 40 04 799 | VIS EPAULEE LA1021 10X160 | 9,00 € | |
| 12 | 16 | 40 04 804 | VIS EPAULEE LA1021 12X 16 | 4,90 € |
| 20 | 40 04 805 | VIS EPAULEE LA1021 12X 20 | 4,99 € | |
| 25 | 40 04 806 | VIS EPAULEE LA1021 12X 25 | 4,99 € | |
| 32 | 40 04 808 | VIS EPAULEE LA1021 12X 32 | 5,47 € | |
| 40 | 40 04 809 | VIS EPAULEE LA1021 12X 40 | 5,78 € | |
| 50 | 40 04 810 | VIS EPAULEE LA1021 12X 50 | 5,96 € | |
| 60 | 40 04 811 | VIS EPAULEE LA1021 12X 60 | 6,43 € | |
| 63 | 40 04 812 | VIS EPAULEE LA1021 12X 63 | 6,62 € | |
| 70 | 40 04 813 | VIS EPAULEE LA1021 12X 70 | 7,09 € | |
| 80 | 40 04 814 | VIS EPAULEE LA1021 12X 80 | 7,41 € | |
| 100 | 40 04 816 | VIS EPAULEE LA1021 12X100 | 8,06 € | |
| 110 | 40 04 817 | VIS EPAULEE LA1021 12X110 | 8,85 € | |
| 140 | 40 04 820 | VIS EPAULEE LA1021 12X140 | 10,87 € | |
| 12 | 200 | 40 04 822 | VIS EPAULEE LA1021 12X200 | 14,76 € |
| 250 | 40 04 823 | VIS EPAULEE LA1021 12X250 | 16,40 € | |
| 16 | 32 | 40 04 828 | VIS EPAULEE LA1021 16X 32 | 8,70 € |
| 40 | 40 04 829 | VIS EPAULEE LA1021 16X 40 | 9,03 € | |
| 50 | 40 04 830 | VIS EPAULEE LA1021 16X 50 | 9,37 € | |
| 63 | 40 04 832 | VIS EPAULEE LA1021 16X 63 | 10,33 € | |
| 70 | 40 04 833 | VIS EPAULEE LA1021 16X 70 | 10,63 € | |
| 80 | 40 04 834 | VIS EPAULEE LA1021 16X 80 | 11,59 € | |
| 100 | 40 04 836 | VIS EPAULEE LA1021 16X100 | 13,52 € | |
| 110 | 40 04 837 | VIS EPAULEE LA1021 16X110 | 14,17 € | |
| 125 | 40 04 839 | VIS EPAULEE LA1021 16X125 | 16,08 € | |
| 140 | 40 04 840 | VIS EPAULEE LA1021 16X140 | 16,72 € | |
| 160 | 40 04 841 | VIS EPAULEE LA1021 16X160 | 17,75 € | |
| 200 | 40 04 842 | VIS EPAULEE LA1021 16X200 | 20,37 € | |
| 20 | 90 | 40 04 854 | VIS EPAULEE LA1021 20X 90 | 19,05 € |
| 125 | 40 04 858 | VIS EPAULEE LA1021 20X125 | 23,27 € |
