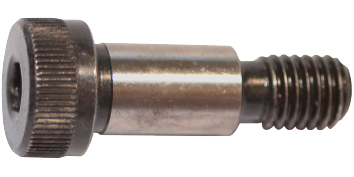

Vis CHC épaulée tête cylindrique LA7379
Propriétés
Interchangeable avec :
E1240, ≈ Z38, Z148.
≈ ISO 7379 - 12.9.

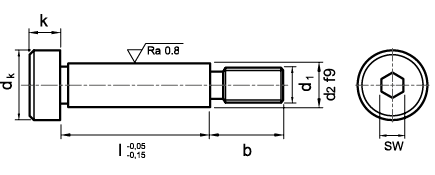

| d1 | SW | kmaxi | dk | b |
| M4 | 2,5 | 4 | 8 | 8 |
| M5 | 3 | 4,5 | 10 | 9,5 |
| M6 | 4 | 5,5 | 13 | 11 |
| M8 | 5 | 7 | 16 | 13 |
| M10 | 6 | 9 | 18 | 16 |
| M12 | 8 | 11 | 24 | 18 |
| M16 | 10 | 14 | 30 | 22 |
| M20 | 12 | 16 | 36 | 27 |
| d1 | d2 | l | Code Lugand | Libellé | Prix HT |
| M4 | 5 | 10 | 40 04 019 | VIS EPAULEE 12.9 M 4X 5X 10 LA7379 | 2,31 € |
| 12 | 40 04 020 | VIS EPAULEE 12.9 M 4X 5X 12 LA7379 | 2,07 € | ||
| 15 | 40 04 022 | VIS EPAULEE 12.9 M 4X 5X 15 LA7379 | 2,14 € | ||
| 16 | 40 04 023 | VIS EPAULEE 12.9 M 4X 5X 16 LA7379 | 2,14 € | ||
| 20 | 40 04 024 | VIS EPAULEE 12.9 M 4X 5X 20 LA7379 | 2,67 € | ||
| 30 | 40 04 026 | VIS EPAULEE 12.9 M 4X 5X 30 LA7379 | 2,55 € | ||
| 35 | 40 04 027 | VIS EPAULEE 12.9 M 4X 5X 35 LA7379 | 2,69 € | ||
| 40 | 40 04 028 | VIS EPAULEE 12.9 M 4X 5X 40 LA7379 | 3,25 € | ||
| M5 | 6 | 6 | 40 04 036 | VIS EPAULEE 12.9 M 5X 6X 6 LA7379 | 1,61 € |
| 8 | 40 04 038 | VIS EPAULEE 12.9 M 5X 6X 8 LA7379 | 2,59 € | ||
| 10 | 40 04 040 | VIS EPAULEE 12.9 M 5X 6X 10 LA7379 | 2,12 € | ||
| 12 | 40 04 043 | VIS EPAULEE 12.9 M 5X 6X 12 LA7379 | 1,82 € | ||
| 15 | 40 04 045 | VIS EPAULEE 12.9 M 5X 6X 15 LA7379 | 1,81 € | ||
| 16 | 40 04 046 | VIS EPAULEE 12.9 M 5X 6X 16 LA7379 | 2,83 € | ||
| 20 | 40 04 049 | VIS EPAULEE 12.9 M 5X 6X 20 LA7379 | 1,83 € | ||
| 25 | 40 04 052 | VIS EPAULEE 12.9 M 5X 6X 25 LA7379 | 2,90 € | ||
| 30 | 40 04 055 | VIS EPAULEE 12.9 M 5X 6X 30 LA7379 | 2,68 € | ||
| 35 | 40 04 057 | VIS EPAULEE 12.9 M 5X 6X 35 LA7379 | 3,09 € | ||
| 40 | 40 04 058 | VIS EPAULEE 12.9 M 5X 6X 40 LA7379 | 3,50 € | ||
| 45 | 40 04 059 | VIS EPAULEE 12.9 M 5X 6X 45 LA7379 | 3,47 € | ||
| 50 | 40 04 061 | VIS EPAULEE 12.9 M 5X 6X 50 LA7379 | 2,32 € | ||
| 55 | 40 04 070 | VIS EPAULEE 12.9 M 5X 6X 55 LA7379 | 2,96 € | ||
| 60 | 40 04 072 | VIS EPAULEE 12.9 M 5X 6X 60 LA7379 | 2,82 € | ||
| 65 | 40 04 074 | VIS EPAULEE 12.9 M 5X 6X 65 LA7379 | 3,30 € | ||
| 80 | 40 04 078 | VIS EPAULEE 12.9 M 5X 6X 80 LA7379 | 4,47 € | ||
| M6 | 8 | 8 | 40 04 063 | VIS EPAULEE 12.9 M 6X 8X 8 LA7379 | 3,71 € |
| 10 | 40 04 065 | VIS EPAULEE 12.9 M 6X 8X 10 LA7379 | 3,16 € | ||
| 12 | 40 04 090 | VIS EPAULEE 12.9 M 6X 8X 12 LA7379 | 2,59 € | ||
| 16 | 40 04 093 | VIS EPAULEE 12.9 M 6X 8X 16 LA7379 | 3,84 € | ||
| M6 | 8 | 20 | 40 04 096 | VIS EPAULEE 12.9 M 6X 8X 20 LA7379 | 2,08 € |
| 25 | 40 04 099 | VIS EPAULEE 12.9 M 6X 8X 25 LA7379 | 2,22 € | ||
| 30 | 40 04 102 | VIS EPAULEE 12.9 M 6X 8X 30 LA7379 | 3,26 € | ||
| 35 | 40 04 103 | VIS EPAULEE 12.9 M 6X 8X 35 LA7379 | 2,89 € | ||
| 40 | 40 04 105 | VIS EPAULEE 12.9 M 6X 8X 40 LA7379 | 2,67 € | ||
| 45 | 40 04 107 | VIS EPAULEE 12.9 M 6X 8X 45 LA7379 | 3,51 € | ||
| 50 | 40 04 108 | VIS EPAULEE 12.9 M 6X 8X 50 LA7379 | 3,88 € | ||
| 60 | 40 04 110 | VIS EPAULEE 12.9 M 6X 8X 60 LA7379 | 5,51 € | ||
| 65 | 40 04 111 | VIS EPAULEE 12.9 M 6X 8X 65 LA7379 | 2,69 € | ||
| 70 | 40 04 112 | VIS EPAULEE 12.9 M 6X 8X 70 LA7379 | 5,88 € | ||
| 90 | 40 04 115 | VIS EPAULEE 12.9 M 6X 8X 90 LA7379 | 2,96 € | ||
| 100 | 40 04 116 | VIS EPAULEE 12.9 M 6X 8X100 LA7379 | 3,03 € | ||
| M8 | 10 | 10 | 40 04 118 | VIS EPAULEE 12.9 M 8X10X 10 LA7379 | 2,71 € |
| 12 | 40 04 119 | VIS EPAULEE 12.9 M 8X10X 12 LA7379 | 2,49 € | ||
| 15 | 40 04 121 | VIS EPAULEE 12.9 M 8X10X 15 LA7379 | 2,07 € | ||
| 16 | 40 04 122 | VIS EPAULEE 12.9 M 8X10X 16 LA7379 | 4,21 € | ||
| 20 | 40 04 123 | VIS EPAULEE 12.9 M 8X10X 20 LA7379 | 2,83 € | ||
| 25 | 40 04 126 | VIS EPAULEE 12.9 M 8X10X 25 LA7379 | 4,64 € | ||
| 30 | 40 04 129 | VIS EPAULEE 12.9 M 8X10X 30 LA7379 | 2,80 € | ||
| 35 | 40 04 130 | VIS EPAULEE 12.9 M 8X10X 35 LA7379 | 3,04 € | ||
| 40 | 40 04 132 | VIS EPAULEE 12.9 M 8X10X 40 LA7379 | 3,32 € | ||
| 45 | 40 04 134 | VIS EPAULEE 12.9 M 8X10X 45 LA7379 | 3,33 € | ||
| 50 | 40 04 135 | VIS EPAULEE 12.9 M 8X10X 50 LA7379 | 3,59 € | ||
| 55 | 40 04 136 | VIS EPAULEE 12.9 M 8X10X 55 LA7379 | 3,76 € | ||
| 60 | 40 04 138 | VIS EPAULEE 12.9 M 8X10X 60 LA7379 | 4,18 € | ||
| 70 | 40 04 141 | VIS EPAULEE 12.9 M 8X10X 70 LA7379 | 4,12 € | ||
| 80 | 40 04 144 | VIS EPAULEE 12.9 M 8X10X 80 LA7379 | 5,27 € | ||
| 90 | 40 04 146 | VIS EPAULEE 12.9 M 8X10X 90 LA7379 | 5,13 € | ||
| 100 | 40 04 148 | VIS EPAULEE 12.9 M 8X10X100 LA7379 | 4,10 € | ||
| M8 | 10 | 110 | 40 04 149 | VIS EPAULEE 12.9 M 8X10X110 LA7379 | 3,92 € |
| 120 | 40 04 150 | VIS EPAULEE 12.9 M 8X10X120 LA7379 | 9,27 € | ||
| M10 | 12 | 12 | 40 04 158 | VIS EPAULEE 12.9 M10X12X 12 LA7379 | 2,85 € |
| 15 | 40 04 159 | VIS EPAULEE 12.9 M10X12X 15 LA7379 | 2,41 € | ||
| 16 | 40 04 160 | VIS EPAULEE 12.9 M10X12X 16 LA7379 | 4,62 € | ||
| 20 | 40 04 163 | VIS EPAULEE 12.9 M10X12X 20 LA7379 | 3,47 € | ||
| 25 | 40 04 166 | VIS EPAULEE 12.9 M10X12X 25 LA7379 | 6,90 € | ||
| 30 | 40 04 169 | VIS EPAULEE 12.9 M10X12X 30 LA7379 | 4,40 € | ||
| 35 | 40 04 171 | VIS EPAULEE 12.9 M10X12X 35 LA7379 | 5,91 € | ||
| 40 | 40 04 172 | VIS EPAULEE 12.9 M10X12X 40 LA7379 | 6,92 € | ||
| 45 | 40 04 174 | VIS EPAULEE 12.9 M10X12X 45 LA7379 | 5,65 € | ||
| 50 | 40 04 175 | VIS EPAULEE 12.9 M10X12X 50 LA7379 | 6,16 € | ||
| 55 | 40 04 177 | VIS EPAULEE 12.9 M10X12X 55 LA7379 | 4,13 € | ||
| 60 | 40 04 178 | VIS EPAULEE 12.9 M10X12X 60 LA7379 | 6,76 € | ||
| 70 | 40 04 181 | VIS EPAULEE 12.9 M10X12X 70 LA7379 | 8,82 € | ||
| 80 | 40 04 184 | VIS EPAULEE 12.9 M10X12X 80 LA7379 | 9,98 € | ||
| 90 | 40 04 187 | VIS EPAULEE 12.9 M10X12X 90 LA7379 | 5,92 € | ||
| 100 | 40 04 190 | VIS EPAULEE 12.9 M10X12X100 LA7379 | 5,99 € | ||
| 110 | 40 04 191 | VIS EPAULEE 12.9 M10X12X110 LA7379 | 5,44 € | ||
| 120 | 40 04 192 | VIS EPAULEE 12.9 M10X12X120 LA7379 | 15,52 € | ||
| 140 | 40 04 194 | VIS EPAULEE 12.9 M10X12X140 LA7379 | 9,24 € | ||
| M12 | 16 | 20 | 40 04 206 | VIS EPAULLE 12.9 M12X16X 20 LA7379 | 7,14 € |
| 30 | 40 04 210 | VIS EPAULLE 12.9 M12X16X 30 LA7379 | 6,54 € | ||
| 40 | 40 04 213 | VIS EPAULEE 12.9 M12X16X 40 LA7379 | 9,48 € | ||
| 50 | 40 04 216 | VIS EPAULEE 12.9 M12X16X 50 LA7379 | 7,93 € | ||
| 60 | 40 04 219 | VIS EPAULEE 12.9 M12X16X 60 LA7379 | 9,99 € | ||
| 70 | 40 04 222 | VIS EPAULÉE 12.9 M12X16X 70 LA7379 | 8,52 € | ||
| 80 | 40 04 225 | VIS EPAULEE 12.9 M12X16X 80 LA7379 | 18,23 € | ||
| 90 | 40 04 228 | VIS EPAULEE 12.9 M12X16X 90 LA7379 | 15,18 € | ||
| M12 | 16 | 100 | 40 04 231 | VIS EPAULEE 12.9 M12X16X100 LA7379 | 11,52 € |
| 110 | 40 04 233 | VIS EPAULEE 12.9 M12X16X110 LA7379 | 9,70 € | ||
| 120 | 40 04 234 | VIS EPAULEE 12.9 M12X16X120 LA7379 | 18,41 € | ||
| 180 | 40 04 240 | VIS EPAULEE 12.9 M12X16X180 LA7379 | 21,08 € | ||
| 200 | 40 04 242 | VIS EPAULEE 12.9 M12X16X200 LA7379 | 19,94 € | ||
| M16 | 20 | 30 | 40 04 246 | VIS EPAULLE 12.9 M16X20X 30 LA7379 | 15,01 € |
| 35 | 40 04 248 | VIS EPAULLE 12.9 M16X20X 35 LA7379 | 11,64 € | ||
| 40 | 40 04 250 | VIS EPAULEE 12.9 M16X20X 40 LA7379 | 11,61 € | ||
| 50 | 40 04 253 | VIS EPAULEE 12.9 M16X20X 50 LA7379 | 16,12 € | ||
| 60 | 40 04 256 | VIS EPAULEE 12.9 M16X20X 60 LA7379 | 8,99 € | ||
| 70 | 40 04 259 | VIS EPAULEE 12.9 M16X20X 70 LA7379 | 14,07 € | ||
| 80 | 40 04 262 | VIS EPAULEE 12.9 M16X20X 80 LA7379 | 24,87 € | ||
| 90 | 40 04 265 | VIS EPAULEE 12.9 M16X20X 90 LA7379 | 52,38 € | ||
| 100 | 40 04 268 | VIS EPAULEE 12.9 M16X20X100 LA7379 | 17,10 € | ||
| 110 | 40 04 269 | VIS EPAULEE 12.9 M16X20X110 LA7379 | 21,87 € | ||
| 120 | 40 04 271 | VIS EPAULEE 12.9 M16X20X120 LA7379 | 20,04 € | ||
| 180 | 40 04 277 | VIS EPAULEE 12.9 M16X20X180 LA7379 | 41,08 € | ||
| M20 | 24 | 50 | 40 04 290 | VIS EPAULLE 12.9 M20X24X 50 LA7379 | 29,35 € |
| 60 | 40 04 293 | VIS EPAULEE 12.9 M20X24X 60 LA7379 | 68,55 € | ||
| 70 | 40 04 296 | VIS EPAULEE 12.9 M20X24X 70 LA7379 | 50,28 € | ||
| 80 | 40 04 299 | VIS EPAULEE 12.9 M20X24X 80 LA7379 | 54,94 € | ||
| 90 | 40 04 302 | VIS EPAULEE 12.9 M20X24X 90 LA7379 | 79,97 € | ||
| 100 | 40 04 305 | VIS EPAULEE 12.9 M20X24X100 LA7379 | 89,50 € | ||
| 120 | 40 04 308 | VIS EPAULEE 12.9 M20X24X120 LA7379 | 94,64 € | ||
| 160 | 40 04 312 | VIS EPAULEE 12.9 M20X24X160 LA7379 | 41,94 € | ||
| 200 | 40 04 316 | VIS EPAULEE 12.9 M20X24X200 LA7379 | 52,25 € |
