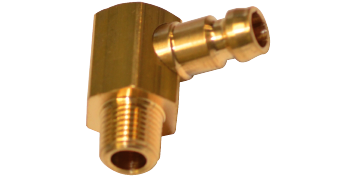

Ref. : LA205E
Interchangeable avec : E2004, Z81/…/90. Matière : 2.0401. Température maxi 200 °C. Pression maxi 15 bars.

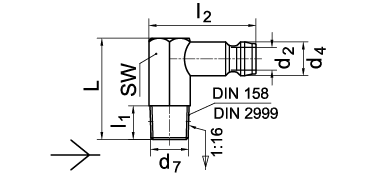

| Nom | Code Lugand | D4 | D7 | D2 | L | L1 | L2 | SW | Prix HT |
|---|---|---|---|---|---|---|---|---|---|
| ABOUT COUD 90ø LA205E 5/M5X0,5-90 | 4101278 | 5 | M5x0,5 | 15,5 | 5 | 24 | 9 | 4,07€ | |
| ABOUT COUD 90ø LA205E 5/M8X0,75-90 | 4101279 | 5 | M8x0,75 | 175 | 5 | 24 | 9 | 4,38€ | |
| ABOUT COUD 90ø LA205E 9/G1/4-90 | 4101289 | 9 | G1/4 | 27 | 9 | 28,5 | 15 | 3,00€ | |
| ABOUT COUD 90ø LA205E 9/G1/8-90 | 4101286 | 9 | G1/8 | 27 | 9 | 28,5 | 15 | 3,60€ | |
| ABOUT COUD 90ø LA205E 9/G3/8-90 | 4101290 | 9 | G3/8 | 30 | 9 | 28,5 | 15 | 3,00€ | |
| ABOUT COUD 90ø LA205E 9/M10X1-90 | 4101283 | 9 | M10x1 | 27 | 9 | 28,5 | 15 | 3,60€ | |
| ABOUT COUD 90ø LA205E 9/M14X1,5-90 | 4101291 | 9 | M14x1,5 | 29 | 9 | 28,5 | 15 | 3,35€ | |
| ABOUT COUD 90ø LA205E 9/M8X0,75-90 | 4101280 | 9 | M8x0,75 | 27 | 9 | 28,5 | 15 | 3,60€ | |
| ABOUT COUD 90ø LA205E 13/G1/4-90 | 4101295 | 13 | G1/4 | 34 | 11 | 32 | 17 | 4,20€ | |
| ABOUT COUD 90ø LA205E 13/G3/8-90 | 4101298 | 13 | G3/8 | 35 | 12 | 32 | 17 | 3,92€ | |
| ABOUT COUD 90ø LA205E 13/M14X1,5-90 | 4101292 | 13 | M14x1,5 | 34 | 11 | 32 | 17 | 4,20€ | |
| ABOUT COUD 90ø LA205E 19/G1/2-90 | 4101304 | 19 | G1/2 | 47 | 16 | 54 | 24 | 20,00€ | |
| ABOUT COUD 90ø LA205E 19/M24X1,5-90 | 4101301 | 19 | M24x1,5 | 47 | 16 | 54 | 24 | 13,45€ |
