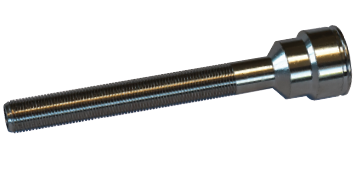

Rallonge filetée série 8 et 12 "LA RPL" LA810F
Propriétés
Interchangeable avec : 608, E2810.
Pour refroidissement des moules d'injection.
Matière : 2.0401.
Température maxi 200 °C.
Pression d'utilisation 20 bars.

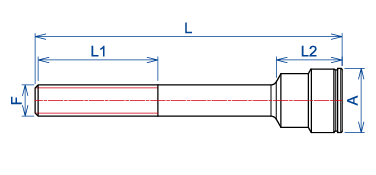

| Série | F | Code Lugand | Libellé | Prix HT | L | L1 | L2 | ØA | SW | ||
| 8 | BSP 1/8" | 41 02 790 | RALLONGE LA810F FR 8 BSPT 1/8 50X26 | 6,10€ | 50 | 26 | 21 | 21 | 6 | ■ | 3D |
| 41 02 792 | RALLONGE LA810F FR 8 BSPT 1/8 100X60 | 8,92€ | 100 | 60 | ■ | 3D | |||||
| 41 02 794 | RALLONGE LA810F FR 8 BSPT 1/8 150X60 | 10,61€ | 150 | 60 | ■ | 3D | |||||
| 41 02 944 | RALLONGE LA810F FR 8 BSPT 1/8 200X50 | 13,76€ | 200 | 50 | 3D | ||||||
| 41 02 946 | RALLONGE LA810F FR 8 BSPT 1/8 250X50 | 29,99€ | 250 | 50 | 3D | ||||||
| 12 | BSP 3/8" | 41 02 936 | RALLONGE LA810F FR 12 BSPT 3/8 100X44 | 23,28€ | 100 | 44 | 42 | 32 | 14 | 3D | |
| 41 02 937 | RALLONGE LA810F FR 12 BSPT 3/8 150X50 | 26,05€ | 150 | 50 | 3D | ||||||
| 41 02 938 | RALLONGE LA810F FR 12 BSPT 3/8 200X50 | 30,56€ | 200 | 50 | 3D | ||||||
| 41 02 939 | RALLONGE LA810F FR 12 BSPT 3/8 250X50 | 41,98€ | 250 | 50 | 3D | ||||||
| 8 | BSP 1/4" | 41 02 800 | RALLONGE LA810F FR 8 BSPT 1/4 50X26 | 5,85€ | 50 | 26 | 21 | 21 | 8 | ■ | 3D |
| 41 02 802 | RALLONGE LA810F FR 8 BSPT 1/4 100X60 | 8,06€ | 100 | 60 | ■ | 3D | |||||
| 41 02 804 | RALLONGE LA810F FR 8 BSPT 1/4 150X60 | 10,44€ | 150 | 60 | ■ | 3D | |||||
| 41 02 806 | RALLONGE LA810F FR 8 BSPT 1/4 200X60 | 13,59€ | 200 | 60 | ■ | 3D | |||||
| 41 02 958 | RALLONGE LA810F FR 8 BSPT 1/4 250X50 | 18,54€ | 250 | 50 | 3D | ||||||
| 12 | BSP 1/2" | 41 02 941 | RALLONGE LA810F FR 12 BSPT 1/2 150X50 | 26,82€ | 150 | 50 | 3D | ||||
| 41 02 942 | RALLONGE LA810F FR 12 BSPT 1/2 200X50 | 31,10€ | 200 | 50 | 3D |
