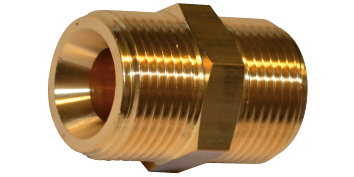

Ref. : LA159
Interchangeable avec E2081, Z812 Matière : 2.0401

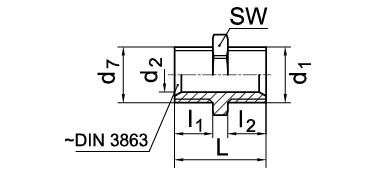

| Nom | Code Lugand | D7 | D1 | D2 | L | L1 | L2 | SW | Prix HT |
|---|---|---|---|---|---|---|---|---|---|
| RACCORD FILET DOUBLE LA159 M14 | 4102282 | M14x1,5 | M14x1,5 | 23 | 9 | 9 | 17 | 1,60€ | |
| RACCORD FILET DOUBLE LA159 M14/M16X1,5 | 4102310 | M14x1,5 | M16x1,5 | 23 | 9 | 9 | 17 | 3,35€ | |
| RACCORD FILET DOUBLE LA159 M14/M18X1,5 | 4102311 | M14x1,5 | M18X1,5 | 26 | 9 | 9 | 19 | 3,35€ | |
| RACCORD FILET DOUBLE LA159 M14XR1/4 | 4102297 | M14x1,5 | G1/4 | 23 | 9 | 9 | 17 | 1,60€ | |
| RACCORD FILET DOUBLE LA159 M16 | 4102285 | M16x1,5 | M16x1,5 | 23 | 9 | 9 | 19 | 2,00€ | |
| RACCORD FILET DOUBLE LA159 M16/M18X1,5 | 4102312 | M16x1,5 | M18X1,5 | 26 | 9 | 9 | 19 | 3,35€ | |
| RACCORD FILET DOUBLE LA159 M16XR3/8 | 4102300 | M16x1,5 | G3/8 | 23 | 9 | 9 | 19 | 2,15€ | |
| RACCORD FILET DOUBLE LA159 M24X1,5 | 4102309 | M24x1,5 | M24x1,5 | 40 | 16 | 16 | 27 | 6,70€ | |
| RACCORD FILET DOUBLE LA159 M24XR1/2 | 4102303 | M24x1,5 | G1/2 | 36 | 16 | 12 | 27 | 7,10€ | |
| RACCORD FILET DOUBLE LA159 R1/2 | 4102276 | G1/2 | G1/2 | 30 | 12 | 12 | 22 | 3,70€ | |
| RACCORD FILET DOUBLE LA159 R1/2XM14 | 4102288 | G1/2 | M14x1,5 | 27 | 12 | 9 | 22 | 5,40€ | |
| RACCORD FILET DOUBLE LA159 R1/2XM16 | 4102291 | G1/2 | M16x1,5 | 27 | 12 | 9 | 22 | 5,40€ | |
| RACCORD FILET DOUBLE LA159 R1/4 | 4102270 | G1/4 | G1/4 | 23 | 9 | 9 | 17 | 1,60€ | |
| RACCORD FILET DOUBLE LA159 R1/4XM16X1,5 | 4102307 | G1/4 | M16x1,5 | 23 | 9 | 9 | 19 | 3,35€ | |
| RACCORD FILET DOUBLE LA159 R3/4 | 4102279 | G3/4 | G3/4 | 40 | 16 | 16 | 27 | 6,90€ | |
| RACCORD FILET DOUBLE LA159 R3/8 | 4102273 | G3/8 | G3/8 | 23 | 9 | 9 | 19 | 2,00€ | |
| RACCORD FILET DOUBLE LA159 R3/8XM14X1,5 | 4102308 | G3/8 | M14x1,5 | 23 | 9 | 9 | 19 | 3,35€ | |
| RACOORD FILETE DOUBLE LA159 G3/4 M24X1,5 | 4102306 | G3/4 | M24x1,5 | 40 | 16 | 16 | 27 | 8,30€ |
