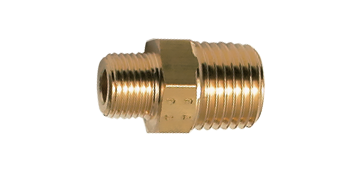

Ref. : LA122
Matière : 2.0401 Température mini -40 °C – maxi 150 °C. Pression maxi 1/8 à 1/2 : 200 bars,
3/4 et 1″ : 150 bars, 1″1/4 à 2″ : 100 bars.
3/4 et 1″ : 150 bars, 1″1/4 à 2″ : 100 bars.

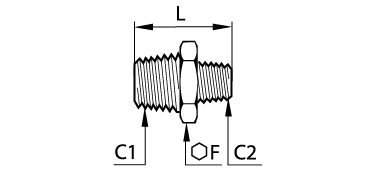

| Nom | Code Lugand | C1 | C2 | F | L | Prix HT |
|---|---|---|---|---|---|---|
| MAMELON DOUBLE CONIQ LA122 R1 1/4 R1 1/4 | 4103602 | 53 | 42,46€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1 1" 1/2 | 4103603 | 57 | 27,61€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1 1/4 R 1 | 4103599 | 50,5 | 39,34€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1 1/4 R1/2 | 4103593 | 46,5 | 36,48€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1 1/4 R3/4 | 4103596 | 47,5 | 38,23€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1 R 1 | 4103590 | 46 | 20,38€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1 R1/2 | 4103584 | 42 | 17,71€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1 R3/4 | 4103587 | 43 | 18,77€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1 R3/8 | 4103581 | 38,5 | 16,66€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1/2 R1/2 | 4103560 | 36 | 4,66€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1/2 R1/4 | 4103554 | 32 | 2,85€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1/2 R1/8 | 4103551 | 28,5 | 4,06€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1/2 R3/8 | 4103557 | 325 | 2,93€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1/4 R1/4 | 4103533 | 27 | 2,11€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1/4 R1/8 | 4103530 | 23,5 | 2,06€ | |||
| MAMELON DOUBLE CONIQUE LA122 R1/8 R1/8 | 4103524 | 19 | 1,44€ | |||
| MAMELON DOUBLE CONIQUE LA122 R3/4 R1/2 | 4103572 | 39 | 8,45€ | |||
| MAMELON DOUBLE CONIQUE LA122 R3/4 R1/4 | 4103566 | 35 | 7,87€ | |||
| MAMELON DOUBLE CONIQUE LA122 R3/4 R3/4 | 4103575 | 40 | 9,07€ | |||
| MAMELON DOUBLE CONIQUE LA122 R3/4 R3/8 | 4103569 | 35,5 | 7,97€ | |||
| MAMELON DOUBLE CONIQUE LA122 R3/8 R1/4 | 4103542 | 275 | 1,75€ | |||
| MAMELON DOUBLE CONIQUE LA122 R3/8 R1/8 | 4103539 | 24 | 2,10€ | |||
| MAMELON DOUBLE CONIQUE LA122 R3/8 R3/8 | 4103545 | 28 | 2,93€ |
