Coupleur mâle femelle série 8 et 12 "LA RPL" LA815F à LA817F






Propriétés
Interchangeable avec : 608, 612.
Matière : Corps de coupleur, bague, embout : 2.0401,
Ressort, cage de joint, billes : acier inoxydable
Température maxi : -20 °C + 100 °C - Joint Nitrile.
-20 °C + 220 °C, utiliser des joints FPM.
Pression d'utilisation 20 bars.

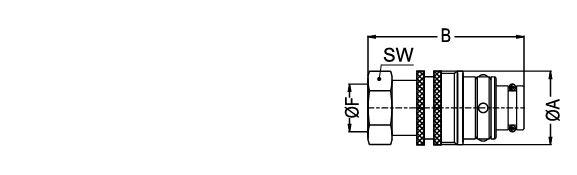

Coupleur filetage femelle
LA815F

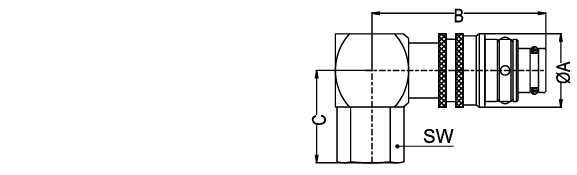

Coupleur filetage femelle à 90°
LA816F
Série | F | Code Lugand | Libellé | Prix HT | A | B | SW |
8 | BSP 1/4" | 41 02 916 | COUPLEUR TARAUDÉ LA815F 1/4 | 7,35€ | 20 | 43 | 17 |
Série | F | Code Lugand | Libellé | Prix HT | A | B | C | SW |
8 | BSP 1/4" | 41 02 924 | COUPLEUR TARAUDE À 90° LA816F 1/4 FR8 | 13,87€ | 20 | 45,5 | 24 | 17 |
