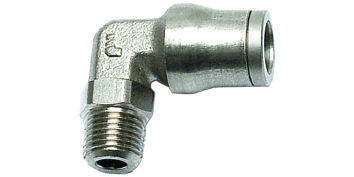

Coude mâle LA60
Propriétés
Matière : Laiton nickelé.
Température d'utilisation -25 à + 150 °C.
Pression d'utilisation maxi 30 bars.
Air - Graisse - Lubrifiant - Eau

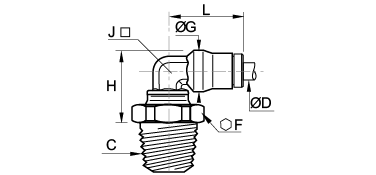

| D | C | Code Lugand | Libellé | Prix HT | F | G | H | J | L |
| 4 | R1/8 | 41 04 467 | COUDE MALE LA60 1/8 TUYAU 4X2,5 | 3,04€ | 13 | 10 | 15 | 7 | 18 |
| R1/4 | 41 04 468 | COUDE MALE LA60 1/4 TUYAU 4X2,5 | 3,73€ | 14 | 10 | 17 | 7 | 18 | |
| 6 | R1/4 | 41 04 470 | COUDE MALE LA60 1/4 TUYAU 6X 4 | 3,75€ | 14 | 12 | 19 | 8 | 21,5 |
| 8 | R1/8 | 41 04 471 | COUDE MALE LA60 1/8 TUYAU 8X5,5 | 5,56€ | 13 | 15 | 19,5 | 10 | 23,5 |
| R1/4 | 41 04 472 | COUDE MALE LA60 1/4 TUYAU 8X5,5 | 4,12€ | 14 | 15 | 21 | 10 | 23,5 | |
| R3/8 | 41 04 473 | COUDE MALE LA60 3/8 TUYAU 8X5,5 | 5,46€ | 17 | 15 | 21 | 10 | 23,5 | |
| 10 | R1/4 | 41 04 474 | COUDE MALE LA60 1/4 TUYAU 10X 7 | 6,24€ | 15 | 17,5 | 23,5 | 12 | 29 |
| R3/8 | 41 04 475 | COUDE MALE LA60 3/8 TUYAU 10X 7 | 6,50€ | 17 | 17,5 | 25,5 | 12 | 29 | |
| 12 | R1/4 | 41 04 476 | COUDE MALE LA60 1/4 TUYAU 12X 8 | 7,58€ | 15 | 19,5 | 26 | 15 | 31 |
| R3/8 | 41 04 477 | COUDE MALE LA60 3/8 TUYAU 12X 8 | 7,39€ | 17 | 19,5 | 28,5 | 15 | 31 | |
| R1/2 | 41 04 478 | COUDE MALE LA60 1/2 TUYAU 12X 8 | 8,92€ | 21 | 19,5 | 28,5 | 15 | 31 |
