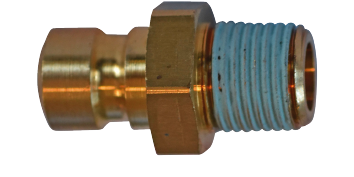

About mâle "USA" LA203UR
Propriétés
Interchangeable avec : N-A.
Matière : ≈ 2.0401.
Température maxi 200 °C.
Pression maxi : 15 bars.

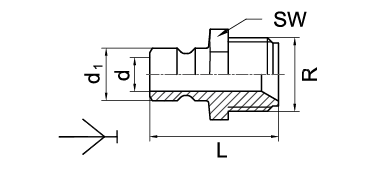

| Série | R | Code Lugand | Libellé | Prix HT | d1 | d | L | SW |
| N6 | M10x1 | 41 01 842 | ABOUT LA203UR-N 6-M10X1 | 1,89€ | 9,4 | 6 | 23 | 13 |
| R1/8 | 41 01 845 | ABOUT LA203UR-N 6-R1/8 | 2,56€ | 24 | 13 | |||
| R1/4 | 41 01 848 | ABOUT LA203UR-N 6-R1/4 | 0,95€ | 29 | 16 | |||
| R3/8 | 41 01 851 | ABOUT LA203UR-N 6-R3/8 | 1,89€ | 30 | 19 | |||
| N9 | R1/8 | 41 01 853 | ABOUT LA203UR-N 9-R1/8 | 2,30€ | 13,5 | 9 | 30 | 14 |
| R1/4 | 41 01 854 | ABOUT LA203UR-N 9-R1/4 | 1,89€ | 34 | 16 | |||
| R3/8 | 41 01 857 | ABOUT LA203UR-N 9-R3/8 | 1,89€ | 34 | 19 | |||
| R1/2 | 41 01 860 | ABOUT LA203UR-N 9-R1/2 | 4,42€ | 9 | 39 | 22 |
