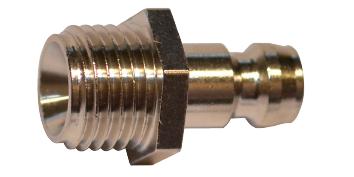

Ref. : LA203E
Interchangeable avec : E2000, Z81, Z7713. Matière : 2.0401. Température maxi 200 °C. Pression maxi 15 bars.

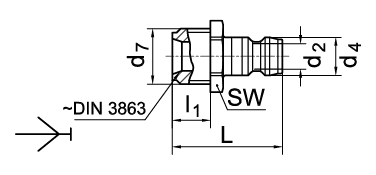

| Nom | Code Lugand | D4 | D7 | D2 | L | L1 | SW | Prix HT |
|---|---|---|---|---|---|---|---|---|
| ABOêT M¶LE LA203E 9 M12X1,5 | 4101239 | 9 | M12x1,5 | 27 | 10 | 14 | 1,10€ | |
| ABOUT M¶LE LA203E 13/G1/2 | 4101264 | 13 | G1/2 | 31 | 12 | 22 | 2,32€ | |
| ABOUT M¶LE LA203E 13/G1/4 | 4101257 | 13 | G1/4 | 26 | 9 | 15 | 0,76€ | |
| ABOUT M¶LE LA203E 13/G1/8 | 4101251 | 13 | G1/8 | 24 | 7 | 15 | 1,10€ | |
| ABOUT M¶LE LA203E 13/G3/4 | 4101265 | 13 | G3/4 | 35 | 16 | 27 | 4,72€ | |
| ABOUT M¶LE LA203E 13/G3/8 | 4101263 | 13 | G3/8 | 26 | 9 | 17 | 0,88€ | |
| ABOUT M¶LE LA203E 13/M10X1 | 4101249 | 13 | M10x1 | 24 | 7 | 15 | 1,07€ | |
| ABOUT M¶LE LA203E 13/M14X1,5 | 4101254 | 13 | M14x1,5 | 26 | 9 | 15 | 0,76€ | |
| ABOUT M¶LE LA203E 13/M16X1,5 | 4101260 | 13 | M16x1,5 | 26 | 9 | 17 | 0,88€ | |
| ABOUT M¶LE LA203E 13/M18X1,50 | 4101261 | 13 | M18x1,5 | 26 | 9 | 19 | 2,80€ | |
| ABOUT M¶LE LA203E 19/G1/2 | 4101269 | 19 | G1/2 | 47 | 12 | 22 | 4,50€ | |
| ABOUT M¶LE LA203E 19/G3/4 | 4101272 | 19 | G3/4 | 51 | 16 | 27 | 5,40€ | |
| ABOUT M¶LE LA203E 19/M24X1,5 | 4101266 | 19 | M24x1,5 | 51 | 16 | 27 | 4,75€ | |
| ABOUT M¶LE LA203E 5/M5 X0,50 | 4101229 | 5 | M5x0,5 | 18 | 5 | 7 | 1,38€ | |
| ABOUT M¶LE LA203E 5/M8 X0,75 | 4101231 | 5 | M8x0,75 | 20 | 7 | 9 | 1,66€ | |
| ABOUT M¶LE LA203E 9/G1/4 | 4101245 | 9 | G1/4 | 26 | 9 | 15 | 0,76€ | |
| ABOUT M¶LE LA203E 9/G1/8 | 4101236 | 9 | G1/8 | 24 | 7 | 11 | 0,67€ | |
| ABOUT M¶LE LA203E 9/G3/8 | 4101248 | 9 | G3/8 | 27 | 9 | 17 | 1,18€ | |
| ABOUT M¶LE LA203E 9/M10X1 | 4101233 | 9 | M10x1 | 24 | 7 | 11 | 0,66€ | |
| ABOUT M¶LE LA203E 9/M14X1,5 | 4101242 | 9 | M14x1,5 | 26 | 9 | 15 | 0,76€ | |
| ABOUT M¶LE LA203E 9/M16X1,50 | 4101243 | 9 | M16x1,5 | 26 | 9 | 17 | 1,21€ | |
| ABOUT M¶LE LA203E 9/M8 X0,75 | 4101230 | 9 | M8x0,75 | 24 | 7 | 11 | 0,76€ |
